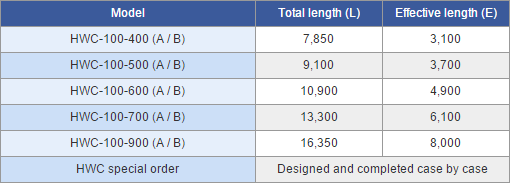

| Model |
Total length (L) |
Effective length (E) |
| HWC-100-400
(A / B) |
7,850 |
3,100 |
| HWC-100-500
(A / B) |
9,100 |
3,700 |
| HWC-100-600
(A / B) |
10,900 |
4,900 |
| HWC-100-700
(A / B) |
13,300 |
6,100 |
| HWC-100-900
(A / B) |
16,350 |
8,000 |
| HWC
special order |
Designed
and completed case by case |
|
| |
 |
In the case of conveyor type of sterilization
machine, the products should not be stacked when they should
be sterilized uniformly because the products move along the
conveyor belt in the boiled/cool water.
For this reason, the dimensions of machine should be designed
according to the feature of product,sterilization time, cooling
time and the capacity needed. In view of this, we calculate and
design the most effective and economical dimensions of machine
case by case.

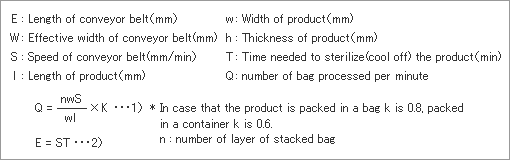

Given the above factors, the calculation formula should be... |
 |
 |

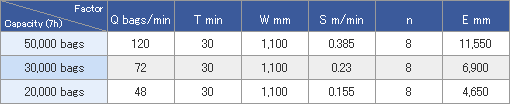

| [ Calculation example (Given w=150, l=150 and
h=20) ] |
 |
|
|
|
There is a recent steam heating system that
the products are heated directly in the tunnel with steam(less
than 1 atmosphere and 100 degree C).
With this fuel-effieicnt steam heating system, the oil consumption
can be reduced.
This system can be adopted according to your demand. For more
detailed information, please contact us without hesitating. |
|
|
